Impression Coping Pick-up
- Using a 1.28 Hex driver
- Recommended torque for fastening : ≤ 5Ncm
- Packaging and order : There are two pieces in the package
(impression with guide pin). and for order use US1IC code with the desired size - pick-up : Used for open tray technique
- Scale of pic is 1:1.5mm
- Korean implant
Diameter Ø 4.0
Pick-up
Code | H | Connection Type | Screw Size |
US1IC-P4011HS | 11 | Hex | Short |
US1IC-P4011NS | 11 | Non-Hex | Short |
US1IC-P4015HL | 15 | Hex | Long |
US1IC-P4015NL | 15 | Non-Hex | Long |
Diameter Ø 4.5
Pick-up
Code | H | Connection Type | Screw Size |
US1IC-P4511HS | 11 | Hex | Short |
US1IC-P4511NS | 11 | Non-Hex | Short |
US1IC-P4515HL | 15 | Hex | Long |
US1IC-P4515NL | 15 | Non-Hex | Long |
Diameter Ø 5.5
Pick-up
Code | H | Connection Type | Screw Size |
US1IC-P5511HS | 11 | Hex | Short |
US1IC-P5511NS | 11 | Non-Hex | Short |
US1IC-P5515HL | 15 | Hex | Long |
US1IC-P5515NL | 15 | Non-Hex | Long |
Diameter Ø 6.5
Pick-up
Code | H | Connection Type | Screw Size |
US1IC-P6511HS | 11 | Hex | Short |
US1IC-P6511NS | 11 | Non-Hex | Short |
US1IC-P6515HL | 15 | Hex | Long |
US1IC-P6515NL | 15 | Non-Hex | Long |
Related products
-
CCM Abutment
- Using a 1.28 Hex driver
- Recommended torque for fastening : ≤ 35Ncm
- Packaging and order : There are two pieces in the package(abutment with screw). and for order use US1CA code with the desired size
- Available in both hex and non-hex
- Melting temperature of CCM : 1300~1400°C
- Scale of pic is 1:1.5mm
-

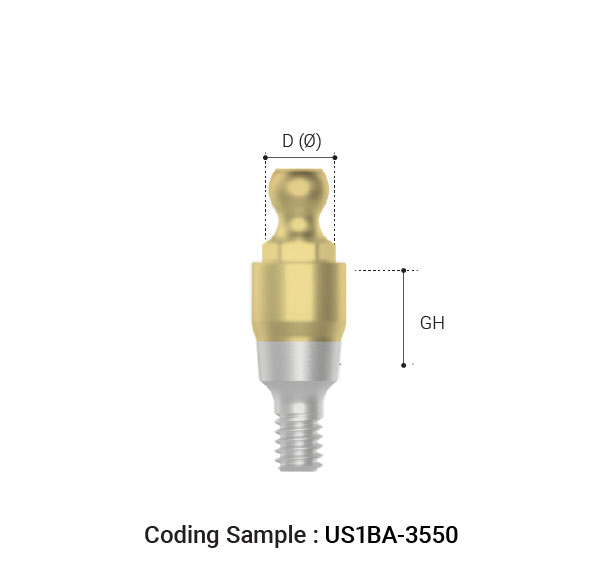

Ball Abutment
- Retains overdenture with O-ring system
- Recommended torque for fasting : 30Ncm
- Scale of pic is 1:1.5mm
- Korean implant
-

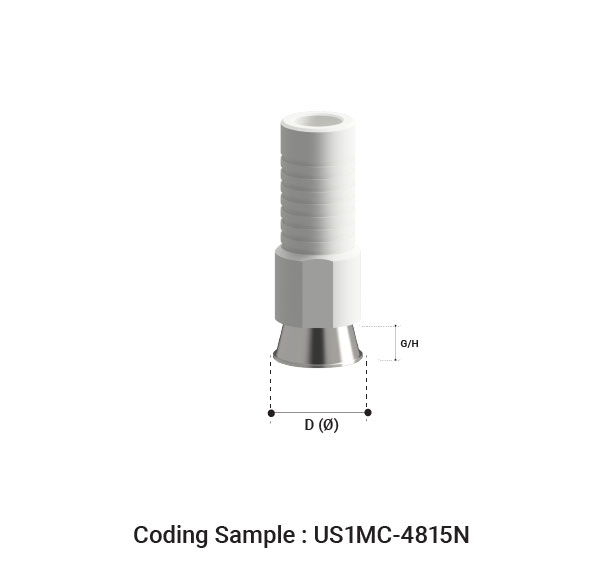

Multi CCM Abutment
